Details

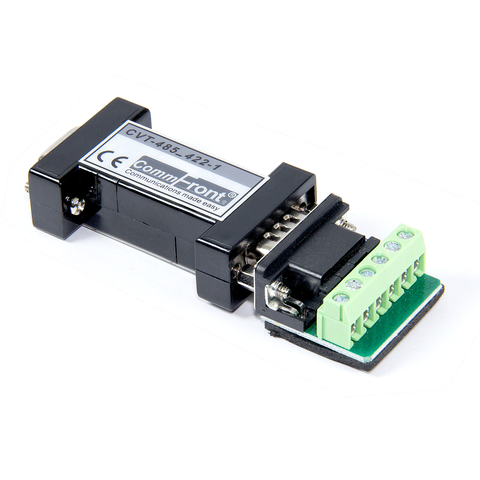

The CVT-485_422-1 is a dual-function, compact, rugged, industrial-grade, port-powered RS232 to RS485 / RS232 to RS422 converter that can be used to convert any standard RS-232C port into a two-wire half-duplex RS485 port, or a four-wire full-duplex RS485 / RS422 port and vice versa. This industrial RS232 to RS485 / RS422 converter supports multi-drop RS485 / RS422 networks and can be used to communicate with one loop of up to 128 units of RS485 / RS422 devices. It operates within a temperature range of -40ºF to 185ºF (-40ºC to 85ºC), and features 600W surge protection and 15kV static protection. The unit is efficiently powered from the RS232 data line and it supports data direction auto-turnaround, which automatically enables the RS485 transceiver when data is present on the RS232 side. Therefore, it requires no external power, software drivers or flow control. The ALL-IN-ONE rugged terminal block, which was professionally designed for different requirements, comes with an optional 5V DC input and a selectable 120-Ohm terminator, thus making it an ideal solution for all types of installations.
CommFront's products quality is ensured by our ISO-9001 quality control system (Cert No. SG12/04213, strictly certified by SGS), and we back our high-quality products with a 5-year replacement warranty and a 30-day risk-free money-back guarantee.
Features
- Rugged industrial-grade port-powered RS232 to RS485 / RS422 converter.
- Port-powered, no external power or RTS, DTR required.
- Industrial grade enclosed in a rugged, rustless ABS housing.
- Converts RS232 to 2-wire RS485, 4-wire RS485 or 4-wire RS422 and vice versa.
- Supports multi-drop RS485 / RS422 networks (up to 128 nodes).
- 300 to 115.2K Baud operation (auto-sensing & self-adjusting).
- Operating temperature: -40ºF to 185ºF (-40ºC to 85ºC).
- Plug and play (hot-pluggable, data format auto-sensing & self-adjusting).
- Data direction auto-turnaround, no flow control or software driver is required.
- Built-in selectable 120Ω terminator for system reliability and easy installation.
- Built-in 600W surge protection, 15kV static protection and circuit protection.
- Accepts external 5VDC regulated power if the port-power is insufficient.
- ALL-IN-ONE rugged terminal block designed for different requirements.
- Surface Mount Technology manufactured to RoHS and ISO-9001 standards.
- Safety: Strictly certified by TUV (Cert No. SG-CE-090012).
- 5-year manufacturer's warranty.
Specifications
| Part Number: | CVT-485_422-1 |
| Compatibility: | EIA/TIA RS-232C standard and RS-485 / RS-422 standard |
| Power Source: | Port power from RS232 data line |
| Current Consumption: | Less than 10mA |
| Baud Rates: | 300 to 115,200bps (Auto-sensing & Self-adjusting) |
| Distance: | Depending on power from RS232 port, will transmit up to 4000ft (1.2km) at 19,200bps |
| Maximum Number of drops: | 128 |
| Connector: | RS232 Side: DB-9 Female; RS485 / RS422 Side: DB-9 Male; Termination Board: DB-9 Female and a 6-Way Terminal Block |
| End of Line Terminator: | 120Ω (built-in, selectable) |
| Surge protection: | 600W |
| Static protection (ESD): | Up to 15KV |
| Dimensions (H x W x D): | 0.63 x 1.3 x 3.5 in (16 x 32 x 90 mm) |
| Weight: | 1.34 oz (38 g) |
| Operating Temperature: | -40ºF to 185ºF (-40ºC to 85ºC) |
| Operating Humidity: | Up to 90% RH (no condensation) |
